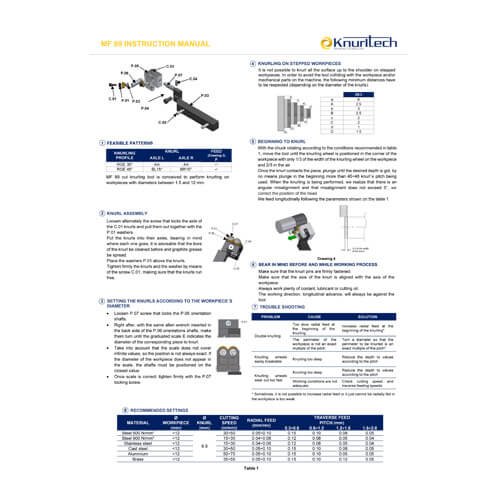

Cut Knurling Tools – MF 89

Feasible Patterns
MF 89 cut knurling tool is conceived to perform knurling on workpieces with diameters between 1.5 and 12 mm.

Details/Data Download



Knurls Assembly

Loosen alternately the screw that locks the axle of the C.01 knurls and pull them out together with the P.01 washers.
Put the knurls into their axles, bearing in mind where each one goes, it is advisable that the bore of the knurl be cleaned before and graphite grease be spread.
Place the washers P.01 above the knurls. Tighten firmly the knurls and the washer by means of the screw C.01, making sure that the knurls run free.
