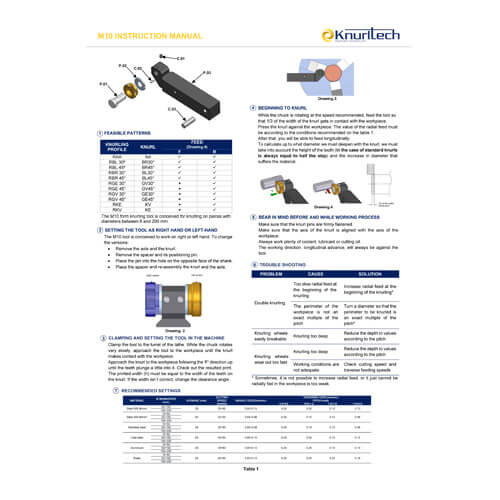

Form Knurling Tool – M10

Feasible Patterns
The M10 form knurling tool is conceived for knurling on pieces with diameters between 8 and 200 mm.

Details/Data Download



Setting The Tool As Right Hand Or Left-Hand

The M10 tool is conceived to work on right or left hand. To change the versions:

  • Remove the axle and the knurl.
  • Remove the spacer and its positioning pin.
  • Place the pin into the hole on the opposite face of the shank.
  • Place the spacer and re-assembly the knurl and the axle.
