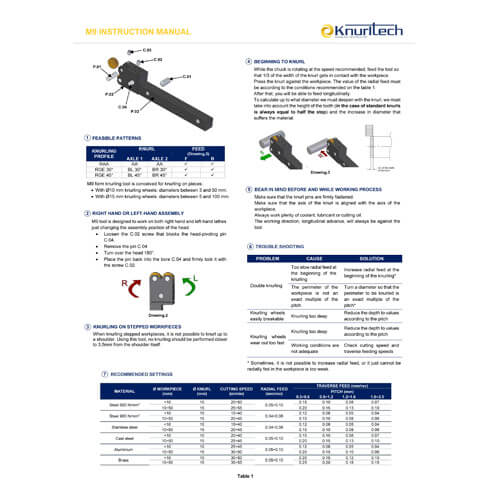

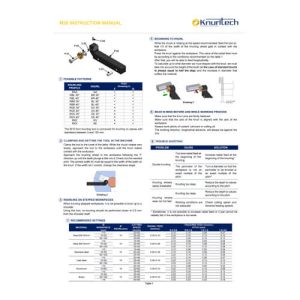

Form Knurling Tool – M9

Feasible Patterns
M9 form knurling tool is conceived for knurling on pieces:

  • With Ø10 mm knurling wheels: diameters between 3 and 50 mm.
  • With Ø15 mm knurling wheels: diameters between 5 and 100 mm.

Details/Data Download



Right Hand Or Left-Hand Assembly

M9 tool is designed to work on both right hand and left-hand lathes, just changing the assembly position of the head.

  • Loosen the C.02 screw that blocks the head-pivoting pin C.04.
  • Remove the pin C.04
  • Turn over the head 180°.
  • Place the pin back into the bore C.04 and firmly lock it with the screw C.02.
