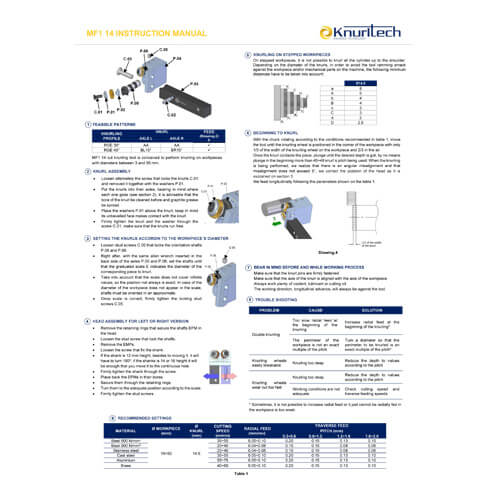

Cut Knurling Tools – MF1 14

Feasible Patterns
MF1 14 cut knurling tool is conceived to perform knurling on workpieces with diameters between 3 and 50 mm.

Details/Data Download

Knurls Assembly

  • Loosen alternately the screw that locks the knurls C.01 and removed it together with the washers P.01.
  • Put the knurls into their axles, bearing in mind where each one goes (see section 2), it is advisable that the bore of the knurl be cleaned before and graphite grease be spread.
  • Place the washers P.01 above the knurl, keep in mind its unbevelled face makes contact with the knurl.
  • Firmly tighten the knurl and the washer through the screw C.01, make sure that the knurls run free.
