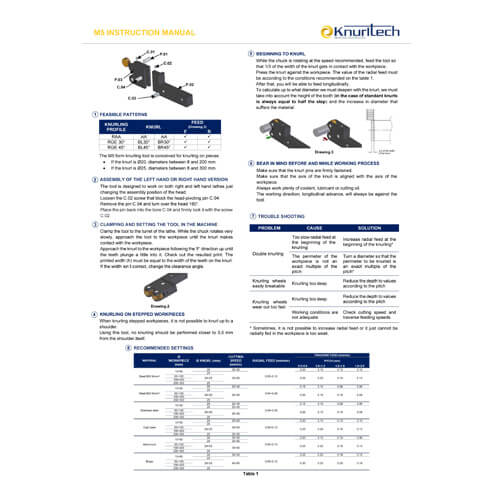

Form Knurling Tool – M5

Feasible Patterns
The M5 form knurling tool is conceived for knurling on pieces:

If the knurl is Ø20, the diameter is between 8 and 200 mm.
If the knurl is Ø25, the diameter is between 8 and 300 mm.

Assembly Of The Left Hand Or Right Hand Version

Assembly Of The Left Hand Or Right Hand Version

The tool is designed to work on both right and left hand lathes, just changing the assembly position of the head.
Loosen the C.02 screw that block the head-pivoting pin C.04.
Remove the pin C.04 and turn over the head 180°.
Place the pin back into the bore C.04 and firmly lock it with the screw C.02.
