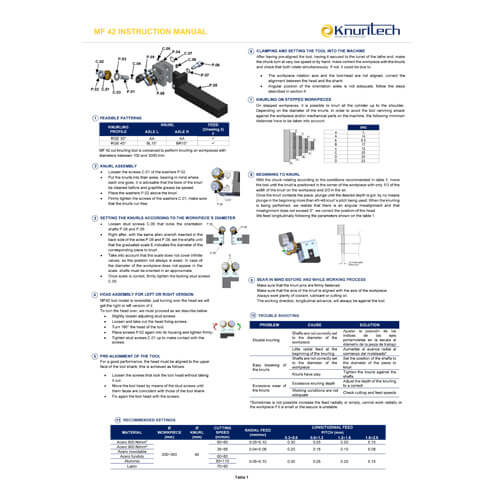

Cut Knurling Tools – MF 42

Feasible Patterns
MF 42 cut knurling tool is conceived to perform knurling on workpieces with diameters between 100 and 3000 mm.

Details/Data Download



Knurls Assembly

  • Loosen the screws C.01 of the washers P.02.
  • Put the knurls into their axles, bearing in mind where each one goes, it is advisable that the bore of the knurl be cleaned before and graphite grease be spread.
  • Place the washers P.02 above the knurl.
  • Firmly tighten the screws of the washers C.01, make sure that the knurls run free.
