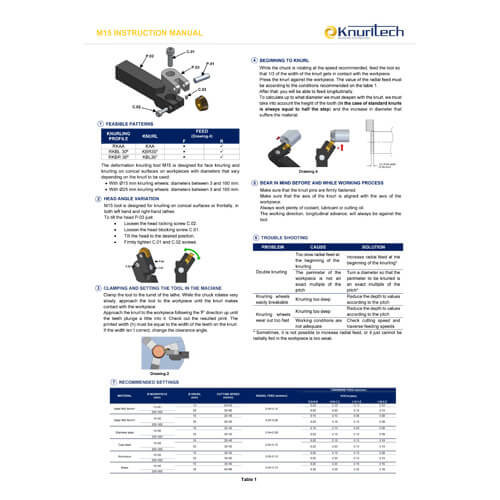

Form Knurling Tool - M15

Form Knurling Tool – M15

Feasible Patterns
The deformation knurling tool M15 is designed for face knurling and knurling on conical surfaces on workpieces with diameters that vary depending on the knurl to be used:

  • With Ø15 mm knurling wheels: diameters between 3 and 100 mm.
  • With Ø25 mm knurling wheels: diameters between 3 and 100 mm.

Details/Data Download

Category: Tags: ,

Head Angle Variation

M15 tool is designed for knurling on conical surfaces or frontally, in both left hand and right-hand lathes. To tilt the head, P-03 just:

  • Loosen the head locking screw C.02.
  • Loosen the head blocking screw C.01.
  • Tilt the head to the desired position.
  • Firmly tighten C.01 and C.02 screws.
